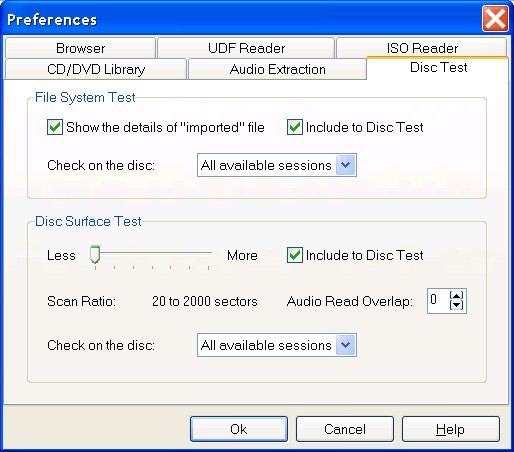

A.4.6. Disc Test Previous  Top  File System Test group. Show the details of "import" file (default value Checked) For multisession discs only. When Checked, a report window displays some info whether a file was imported from the prior session ("came from session # ..."), or not. Include to Disc Test (default value Checked) When Checked File System Test will be included to the list of available tests. Check on the disc (default value All available sessions) If All available sessions option has been selected the program checks file systems of all sessions on multisession disc. In case of Selected session only the selected session is examined. Note. There is no difference between these two settings for single session disc. Disc Surface Test group. Scan ratio Track Bar (default position 20 to 2000 sectors) Sets the current ratio of read sectors to total sectors in the block. For example, "20 to 2000 sectors" setting means that the program reads 20 sectors in the block of 2000 sectors and therefore, then skips (2000 - 20) sectors before the next reading. This setting is used for Disc Surface Test and also for DAE Quality test. Include to Disc Test (default value Unchecked) When Checked Disc Surface Test is included to the list of available tests. For mixed CDs it means that as Disc Surface Test as DAE Quality test will be included to the list of available tests. Check on the disc (default value All available sessions) If All available sessions option has been selected the program scans disc surface on all sessions. In case of Selected session only the selected session is examined on multisession disc. Note. There is no difference between these two settings for single session disc. Audio Read Overlap (default and minimum values are 0, maximum value is 7) Sets the number of overlapping sectors for DAE Quality test. This may be useful to determine the value of overlap for so-called "jitter correction" while reading CD audio data.
